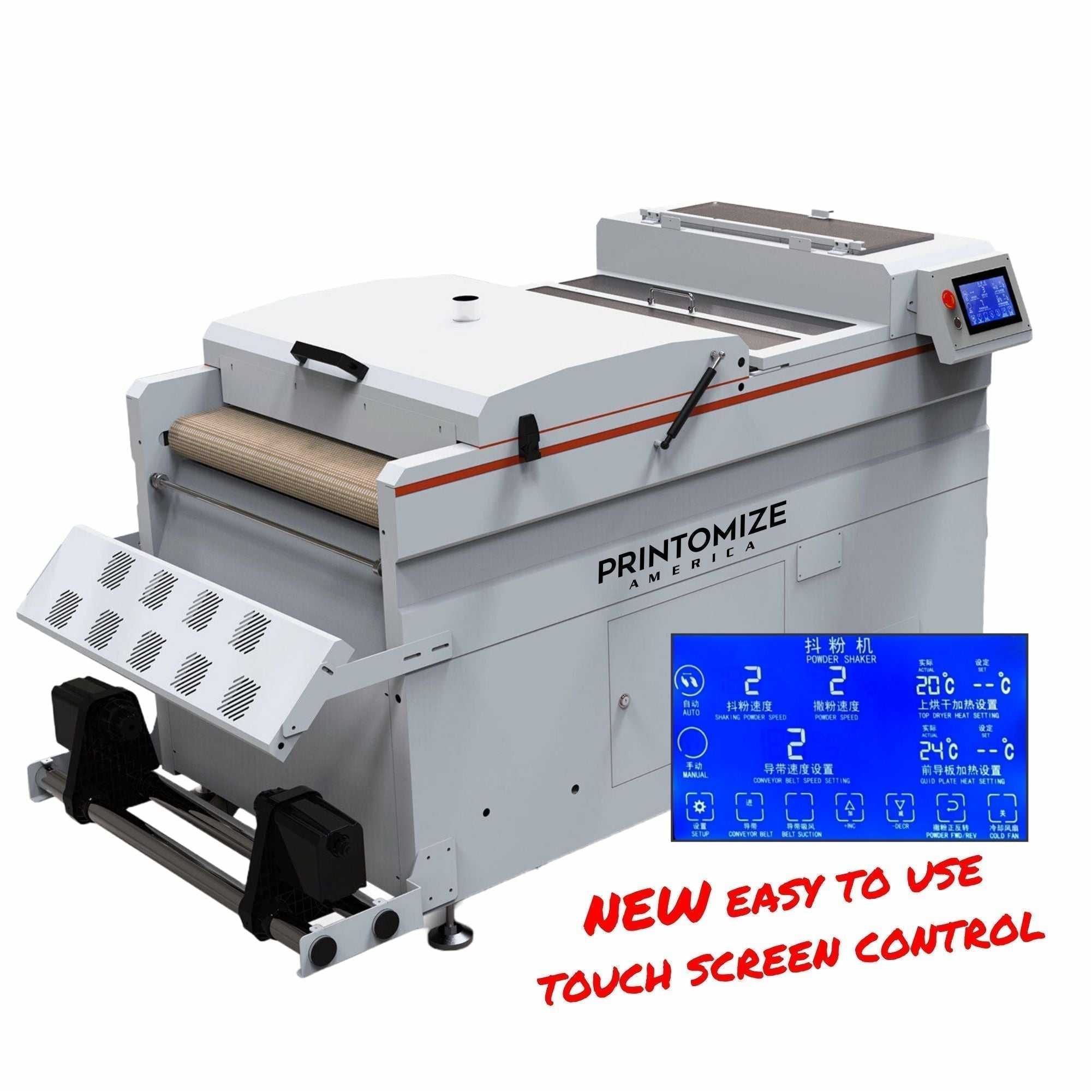

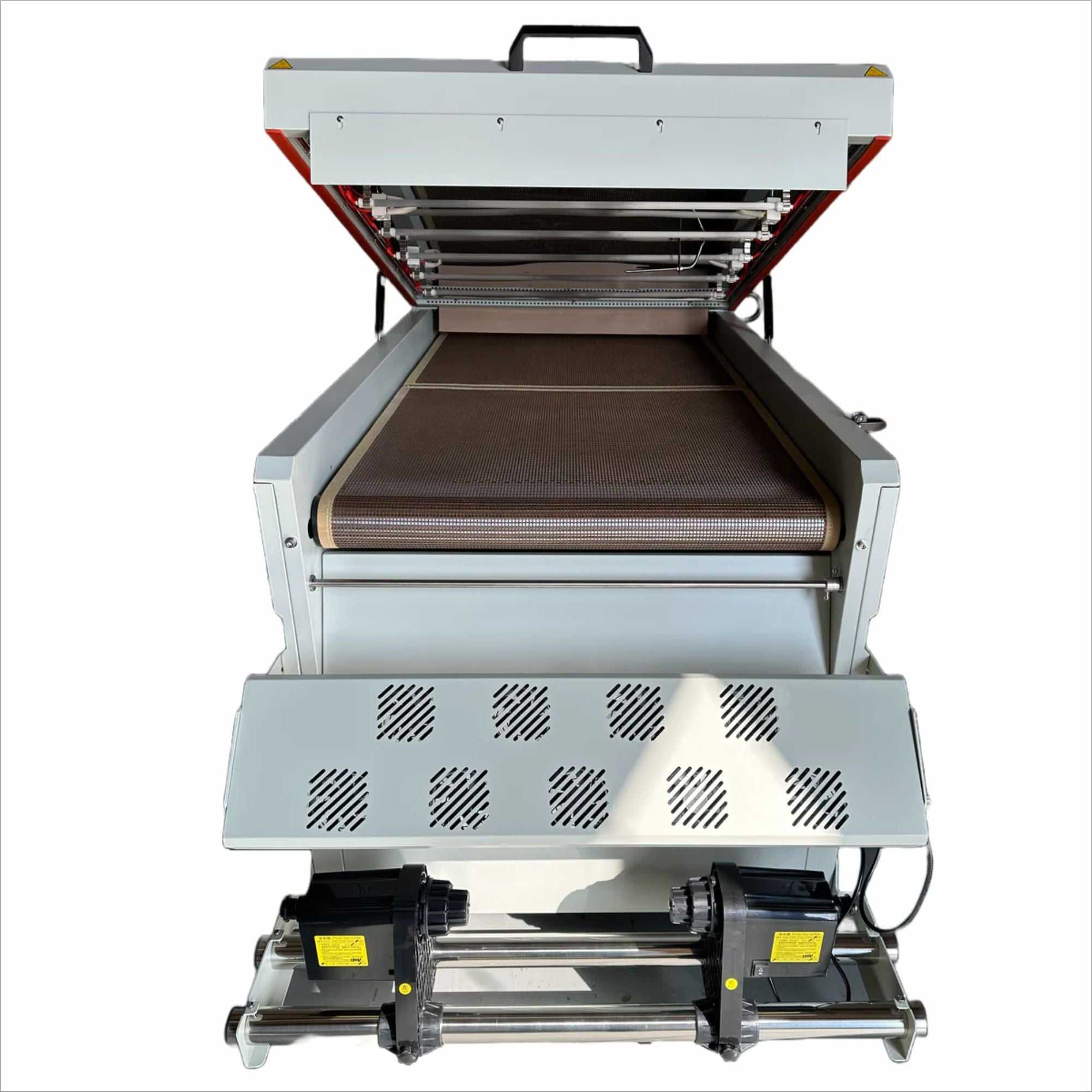

2 Head DTF Oven 24in Automatic DTF Powder Shaker and Dryer

2 Head DTF Oven — 24in Automatic Powder Shaker and Dryer

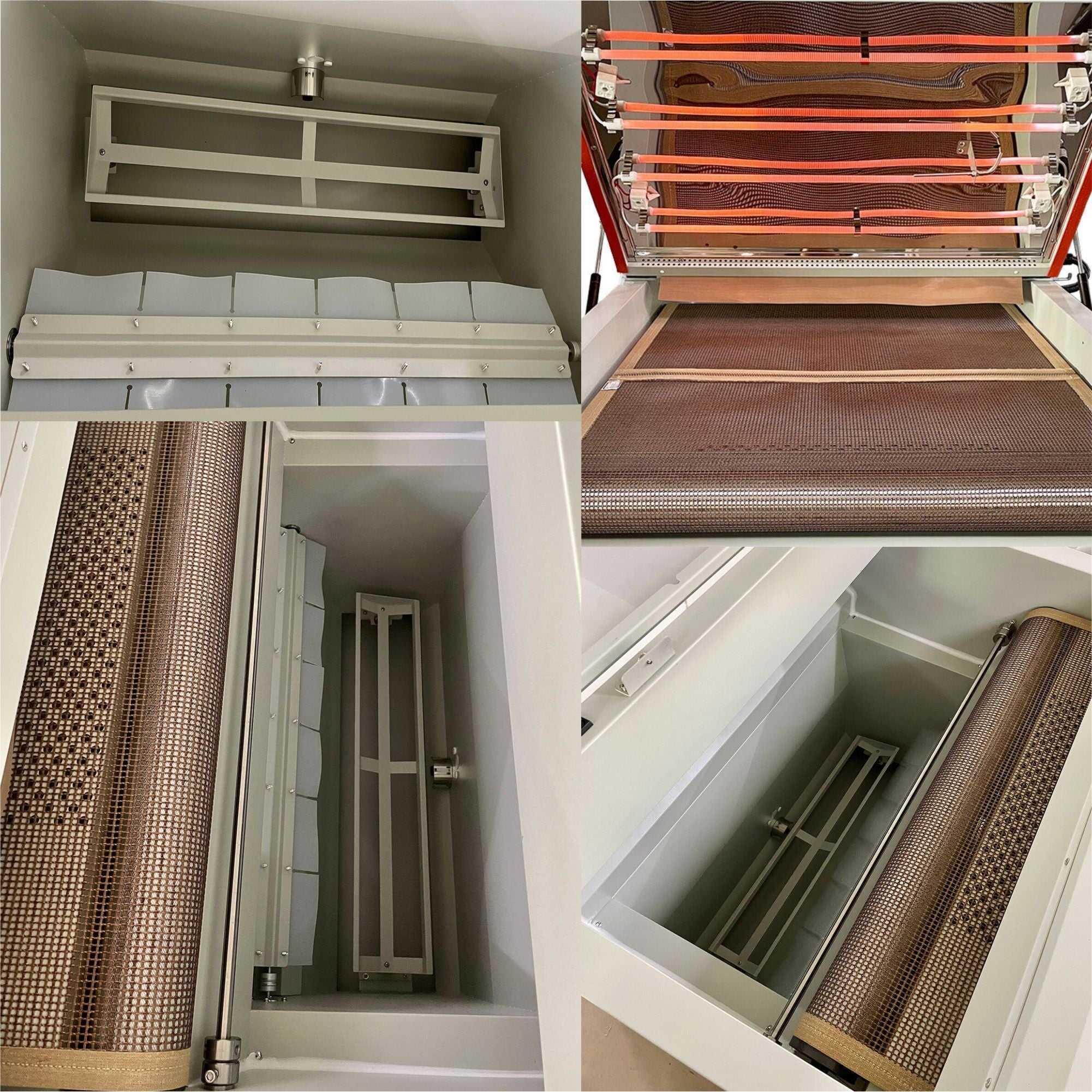

Key features

• Maximum shake powder width: 600mm (23.6")
• Functions: Shake powder control, dusting control, PID curing temperature setting
• Heating element: Quartz infrared heat drying tube
• Rewinding: Automatic induction rewinding
• Heating and drying mode: Front guide plate heating, upper drying curing
• Cooling: 9 fan air cooling (2 row)
• Powder spreading: Motor-driven brush pushes hot melt powder out of the powder box
• Powder shaking: Motor-driven lever beats the film to clear excess powder

Specifications

• Machine size: 76.9" x 39.5" x 43" (1953mm x 1002mm x 1092mm)
• Weight: 528 lbs (240kg)
• Packaging size: 70.5" x 44.1" x 44.5" (1790mm x 1120mm x 1136mm)
• Gross weight: 638 lbs (290kg)

Requirements

• Power supply: AC 220V, 50/60Hz, 1 phase
• Current: 23A, 5000W

Limited Warranty:

Our one Year limited warranty covers all factory original parts for one year from the date of purchase. But excludes components that come in contact with ink. The Limited Warranty and Support are valid for the original purchaser only and are non-transferable Customer is responsible for to and from shipping charges to have the printer repaired by Printomize America in Torrance CA. Printer must be sent in original packaging, Printomize America is not responsible for shipping damage due to poor packaging. Customer may self-install warranty parts, Printomize America is not responsible for damage caused during self-repair. Once the limited warranty ends, the customer is responsible for any troubleshooting and cost of parts.

WHAT IS COVERED

The limited warranty will cover the following parts: Mainboard, Power board, Head Board, A replacement part will be issued only one time during the 12 month period All defective parts replaced under the limited warranty must be shipped back to Printomize America , Torrance, CA at the customer expense within 15 business days. Failure to return warranty replaced parts within 15 business days will result in the customer being billed for the replacement part.

WHAT IS NOT COVERED

The limited warranty will not cover components that come in contact with inks this includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, or fans are not covered .

Additional Limited Warranty Terms

The limited warranty will not cover the following

1. Physical, cosmetics, or shipping damage by the carrier. In that case, is the customer's responsibility to open a direct claim with the carrier company to report any damages.


2. Damage caused by disasters, such as fire, flood, lightning, improper electrical current, software problems, or interaction with non- Printomize America products.


3. Damage caused by improper installation, failure to follow the proper instructions, performing preventive maintenance**, improper or abnormal use, misuse, neglect, or accident including but not limited to improper storage or transporting the product without the proper preparation and packaging, unauthorized adjustments, modifications or addition of accessories, normal wear and tear or external causes such as accidents or other actions or events beyond our reasonable control.

The Limited warranty is VOID if non Printomize America consumables used,or the product has been altered or modified in any way, including but not limited to attempted repairs without prior authorization from Printomize America or the use of unauthorized parts.

The Defective on Arrival (DOA) period is 10 days starting the date customer receives the shipment. If the product you purchased arrives with missing parts or non-working parts that are not covered by the limited warranty, we will cover the replacement part and shipping cost to send the part/s you need. After 10 days, the customer is responsible for any part and shipping costs.

Printomize America does not provide a loaner printer during the repair and shipping time and is not responsible for any losses due to downtime.

Equipment must be returned for repair. We do not send out a replacement equipment unless we deem yours can't be repaired by us. Replacement equipment will be either new or like new refurbished.

Customers that do not keep the shipping crate can purchase a new crate from us for $500 plus shipping.

It is the customers responsibility to get the equipment back to Printomize America safely. Warranty does not cover damage in shipping due to poor packing.

Equipment must be returned in original Printomize America crate. If not, customer will be charged for a new crate to return the equipment.

***Customer Responsibilities and Maintenance***

MAINTENANCE

Maintenance is the key to keeping your machines running in top condition. Keeping up with a cleaning routine and creating a climate-friendly workplace to print in will help your printer run smoothly. It is the customer’s responsibility to learn how to do the proper maintenance on your printer. The customer understands that the inks are water-based and will clog the printheads if the machine is left unused for more than a couple of days. These are some things you can do:

1. Perform nozzle checks every day before starting any print jobs. This way, you can tell if the printhead is ready to print or if any nozzles are blocked and needs to be cleaned.
2. At the end of your print day, you will need to clean around the printhead and clean the wiper blade. This is done to prevent the printheads from getting clogged. A cleaning solution is recommended to be used when necessary.
3. Wet capping the printer capping station every day after you finish printing for the day. This helps the printhead underneath to stay wet and to prevent the printhead from getting clogged. A cleaning solution or capping station solution is recommended for use.

Comprehensive 1 Year Warranty:

Our Comprehensive warranty covers all original parts for 1 year from the date of purchase. The Comprehensive Warranty and Support are valid for the original purchaser only and are non-transferable.The Customer is responsible for to and from shipping charges to have the printer repaired by Printomize America in Torrance CA. Printer must be sent in original packaging, Printomize America is not responsible for shipping damage due to poor packaging. Customer may self-install warranty parts, Printomize America is not responsible for damage caused during self-repair. Once the Comprehensive warranty ends, the customer is responsible for any troubleshooting and cost of parts.

WHAT IS COVERED

The Comprehensive warranty will cover the following parts:

Printer

Mainboard, Print Heads* Power board, Head Board, capping station , ink system ink tank, ink mixer, ink lines and power pump, CR motor, belts, decoder, sensors ,Heat ,Plate , Fans.
*Comprehensive Warranty has a policy abuse limit on Print Heads:

Oven/Shaker:

Motors, Fans, Electrical Components*

All defective parts replaced under the Comprehensive warranty must be shipped back to Printomize America, Torrance, CA at the customer expense within 15 business days. Failure to return warranty replaced parts within 15 business days will result in the customer being billed for the replacement part.

WHAT IS NOT COVERED

The Comprehensive warranty will not cover components that is considered fear wear and tear these include:

All Printers: Dampers, Print Head Wipers, Print Head Caps, encoder strip
All Oven/Shaker : Shaker Blades , Oven Belt , Heating/Curing Bulbs

Additional Warranty Terms

The Comprehensive warranty will not cover the following

1. Physical, cosmetics, or shipping damage by the carrier. In that case, is the customer's responsibility to open a direct claim with the carrier company to report any damages.
2. Damage caused by disasters, such as fire, flood, lightning, improper electrical current, software problems, or interaction with non- Printomize America products.
3. Damage caused by improper installation, failure to follow the proper instructions, performing preventive maintenance**, improper or abnormal use, misuse, neglect, or accident including but not limited to improper storage or transporting the product without the proper preparation and packaging, unauthorized adjustments, modifications or addition of accessories, normal wear and tear or external causes such as accidents or other actions or events beyond our reasonable control.

The Comprehensive warranty is VOID if non  Printomize America consumables are used, or the product has been altered or modified in any way, including but not limited to attempted repairs without prior authorization from Printomize America or the use of unauthorized parts.

The Defective on Arrival (DOA) period is 10 days starting the date customer receives the shipment. If the product you purchased arrives with missing parts or non-working parts that are not covered by the limited warranty, we will cover the replacement part and shipping cost to send the part/s you need. After 10 days, the customer is responsible for any part and shipping costs.

Printomize America does not provide a loaner printer during the repair and shipping time and is not responsible for any losses due to downtime.

Equipment must be returned for repair. We do not send out a replacement equipment unless we deem yours can't be repaired by us. Replacement equipment will be either new or like new refurbished.

Customers that do not keep the shipping crate can purchase a new crate from us for $500 plus shipping.

It is the customers responsibility to get the equipment back to Printomize America safely. Warranty does not cover damage in shipping due to poor packing.

Equipment must be returned in original Printomize America crate. If not, customer will be charged for a new crate to return the equipment.

***Customer Responsibilities and Maintenance***

MAINTENANCE

Maintenance is the key to keeping your machines running in top condition. Keeping up with a cleaning routine and creating a climate-friendly workplace to print in will help your printer run smoothly. It is the customer’s responsibility to learn how to do the proper maintenance on your printer. The customer understands that the inks are water-based and will clog the printheads if the machine is left unused for more than a couple of days. These are some things you can do:

1. Perform nozzle checks every day before starting any print jobs. This way, you can tell if the printhead is ready to print or if any nozzles are blocked and needs to be cleaned.
2. At the end of your print day, you will need to clean around the printhead and clean the wiper blade. This is done to prevent the printheads from getting clogged. A cleaning solution is recommended to be used when necessary.
3. Wet capping the printer capping station every day after you finish printing for the day. This helps the printhead underneath to stay wet and to prevent the printhead from getting clogged. A cleaning solution or capping station solution is recommended for use.
