Epson i3200-A1 Printhead — Existing Customers Only, Call to Order

Available only to customers who have purchased a DTF printer from Printomize America. Please call us to place your order.

OEM Epson i3200-A1 printhead for water-based (aqueous) inks. Supports 4 colours, with 3200 nozzles across 8 rows and a 1.33 inch effective print width. PrecisionCore MicroTFP construction.

Standard or HD — check before ordering

The i3200-A1 and the i3200-A1 HD are structurally the same head, both with 8 rows of 400 nozzles. They are not interchangeable. Each printer can only run the head type it was designed for.

• i3200-A1 (this head) supports 4 colours. The manifold has 4 inputs (nipples) for damper connections, and each colour is emitted by a pair of nozzle rows, giving 600 npi per colour.
• i3200-A1 HD supports 8 colours. The manifold has 8 inputs, and each colour is emitted by a single nozzle row, giving 300 npi per colour.

This head gives higher resolution per colour. The HD gives more colours. Ordering the wrong type means a head that will not run on your machine.

Installation

We recommend replacing the head cables when installing a new printhead.

Specifications

• Ink type: aqueous (water-based)
• Type: PrecisionCore MicroTFP printhead
• Number of nozzles: 3200
• Nozzle rows: 8 rows of 400
• Nozzle pitch per row: 1/300 inch
• Nozzle resolution: 300 npi per row, 600 npi across 2 rows, 1200 npi across 4 rows
• Colour inks supported: 4
• Effective print width: 33.8 mm (1.33 inches)

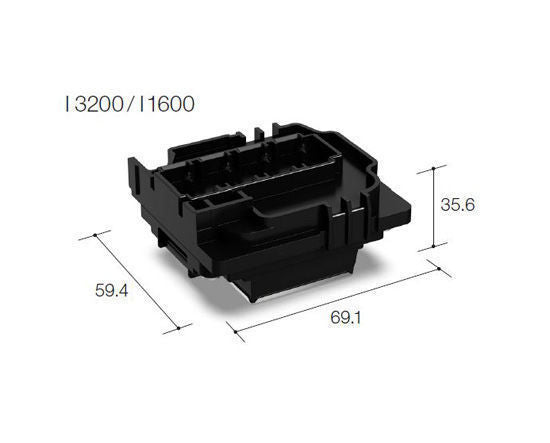

• Dimensions (W x D x H): 69.1 x 59.5 x 36.7 mm
• Weight: 78 g
• Viscosity range: 2.2 to 3.8 mPa·s
• Country of origin: Japan

Droplet ejection performance

• Binary: 6 pl at 43.2 kHz
• 3 level greyscale: 6.3 and 12.3 pl at 21.6 kHz
• 4 level greyscale: 3.8, 6.1 and 9.4 pl at 21.6 kHz

Warranty

This printhead carries a manufacturer warranty. The following are expressly excluded from coverage:

• Defects related, in any way, to the use of non-original inks
• Clogged, missing or deviated nozzles
• Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
• Defects related to failure to perform periodic maintenance as specified in the user documentation, or operation for unintended purposes
• Defects related to improper loading of media
• Defects related to third-party applications, software, parts, components or peripheral devices, including any bulk ink system
• Defects that are merely cosmetic in nature
• All other defects, failures or damage not considered manufacturing defects
