Hyper 8 Head DTF Printer & Dryer
Printomize America leads the garment decorating industry with innovative DTF print technology. Our high volume, low cost DTF systems deliver 50% more productivity than any other DTF printer in their class, backed by an industry-leading warranty and same-day support.

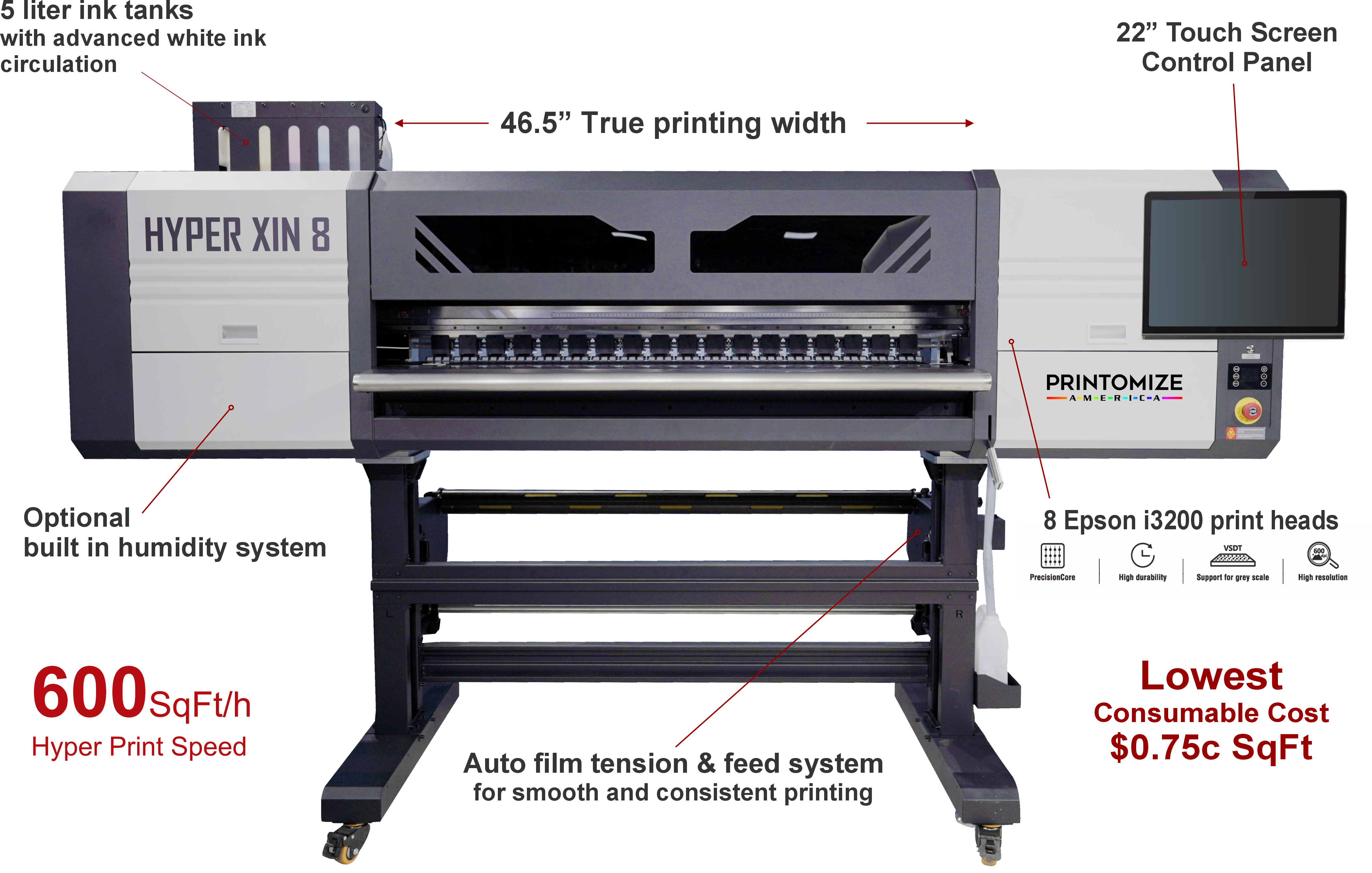

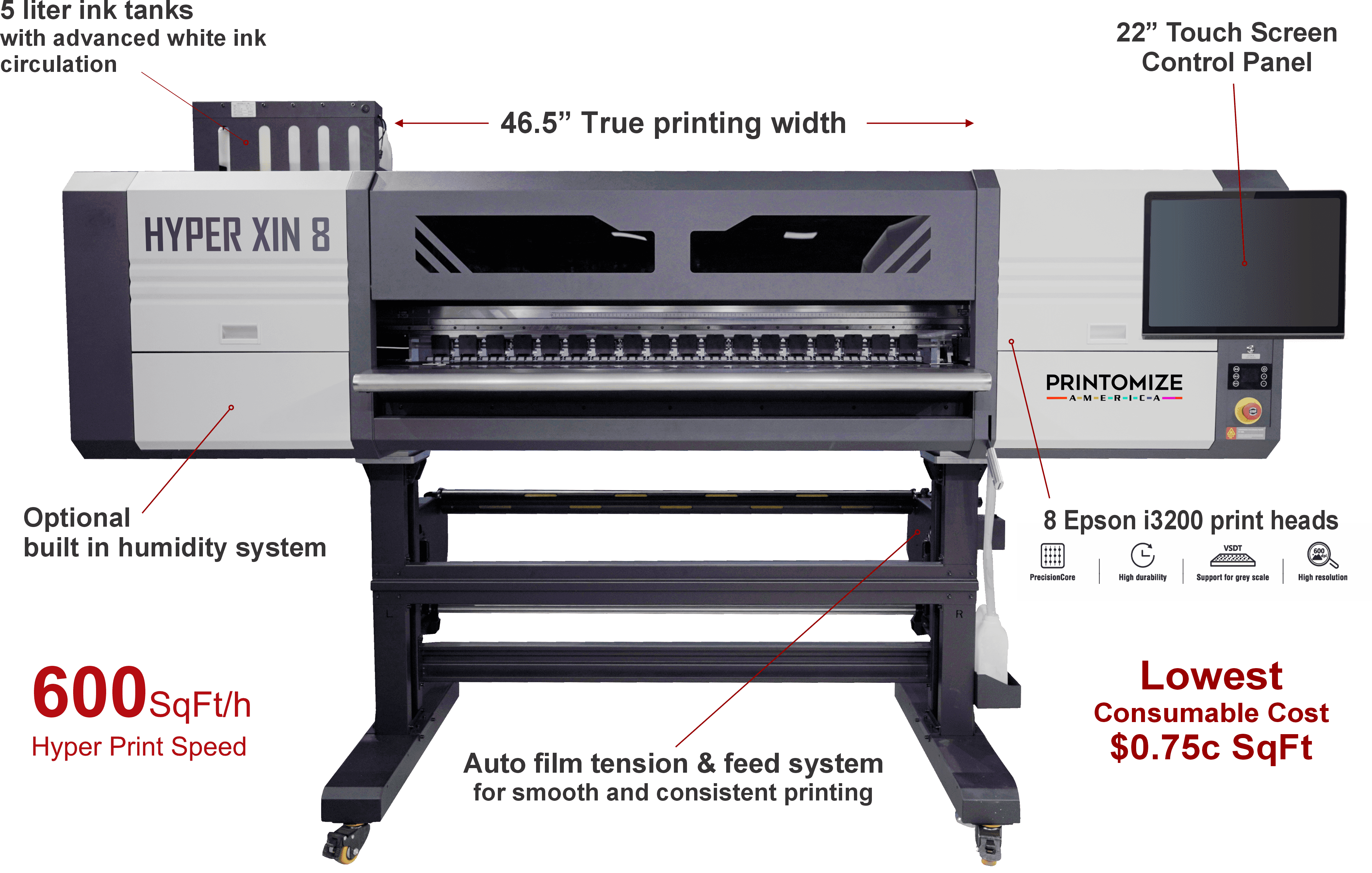

The first commercially available 8 head, 46.5" print width HYPER DTF system, capable of 600 square feet per hour.
Why Hyper 8
- Lower cost per print: 50% reduction in manufacturing costs compared with standard DTF systems, averaging $0.75 per square foot
- Six machines in one: 600 sq ft per hour is the same output as six standard 2 head DTF printers
- Integrated RIP: Hosonsoft Hyper RIP with 22" touch screen control
- Workflow integration: Custom API access to fit your existing automation systems
- Optional flatbed cutter for automation of single cut transfers
Key Features
Printer
- Printheads: 8 x Epson i3200 (CMYK, CMYK–WWWW, WWWW)
- Print speed: Over 600 sq ft per hour
- Maximum print width: 46.5"
- RIP software: Hosonsoft Hyper RIP with touch screen control. PrintFactory, Digital Factory and Maintop optional
- Auto maintenance: Automatic ink supply, cleaning and capping
- Protective features: Anti-collision system safeguards the printheads
- Ink capacity: Each ink tank holds 5 liters of DTF ink
- Film handling: Anti-static film bar, preheater and film print vacuum system
- Control: Advanced print control interface

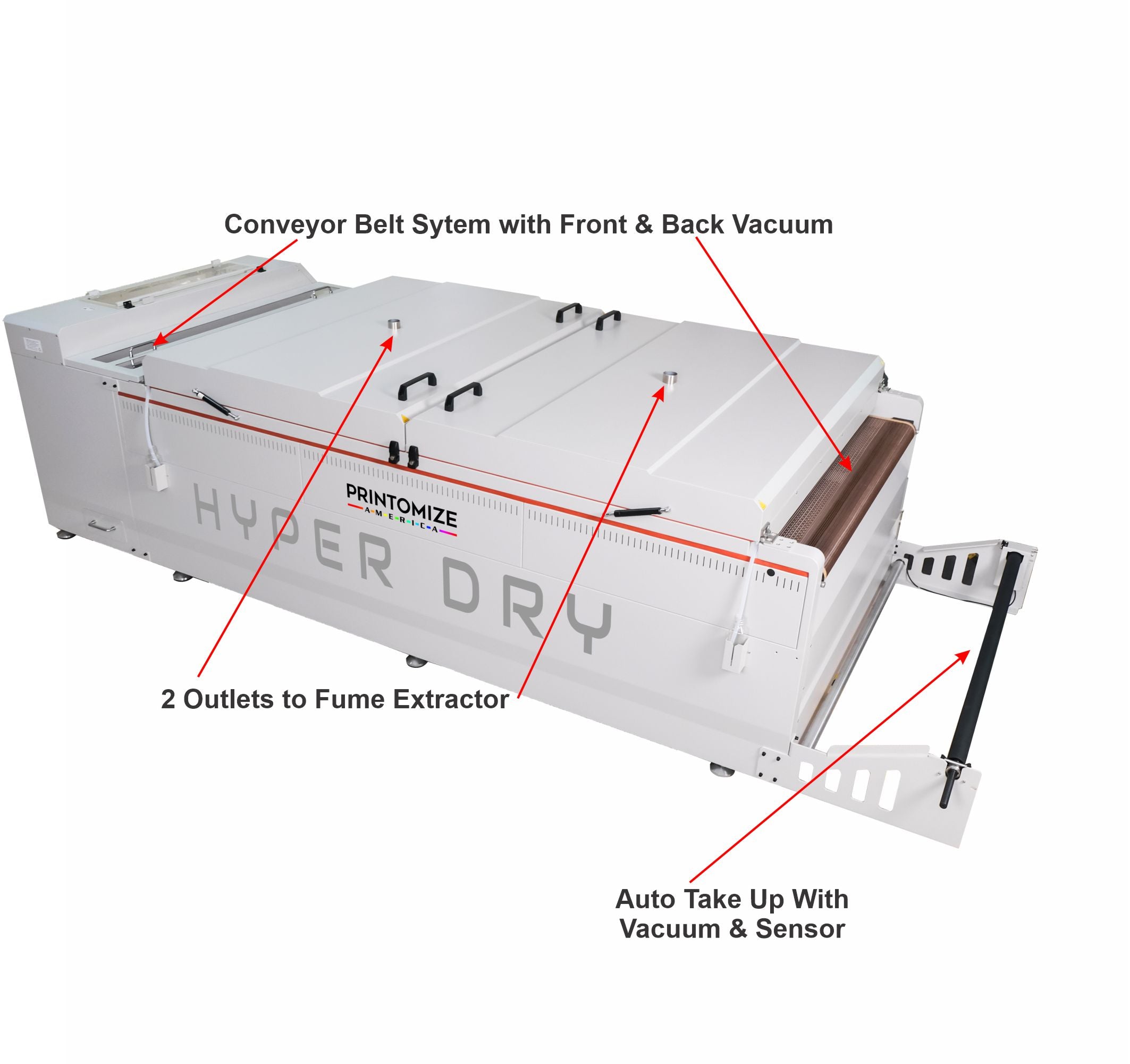

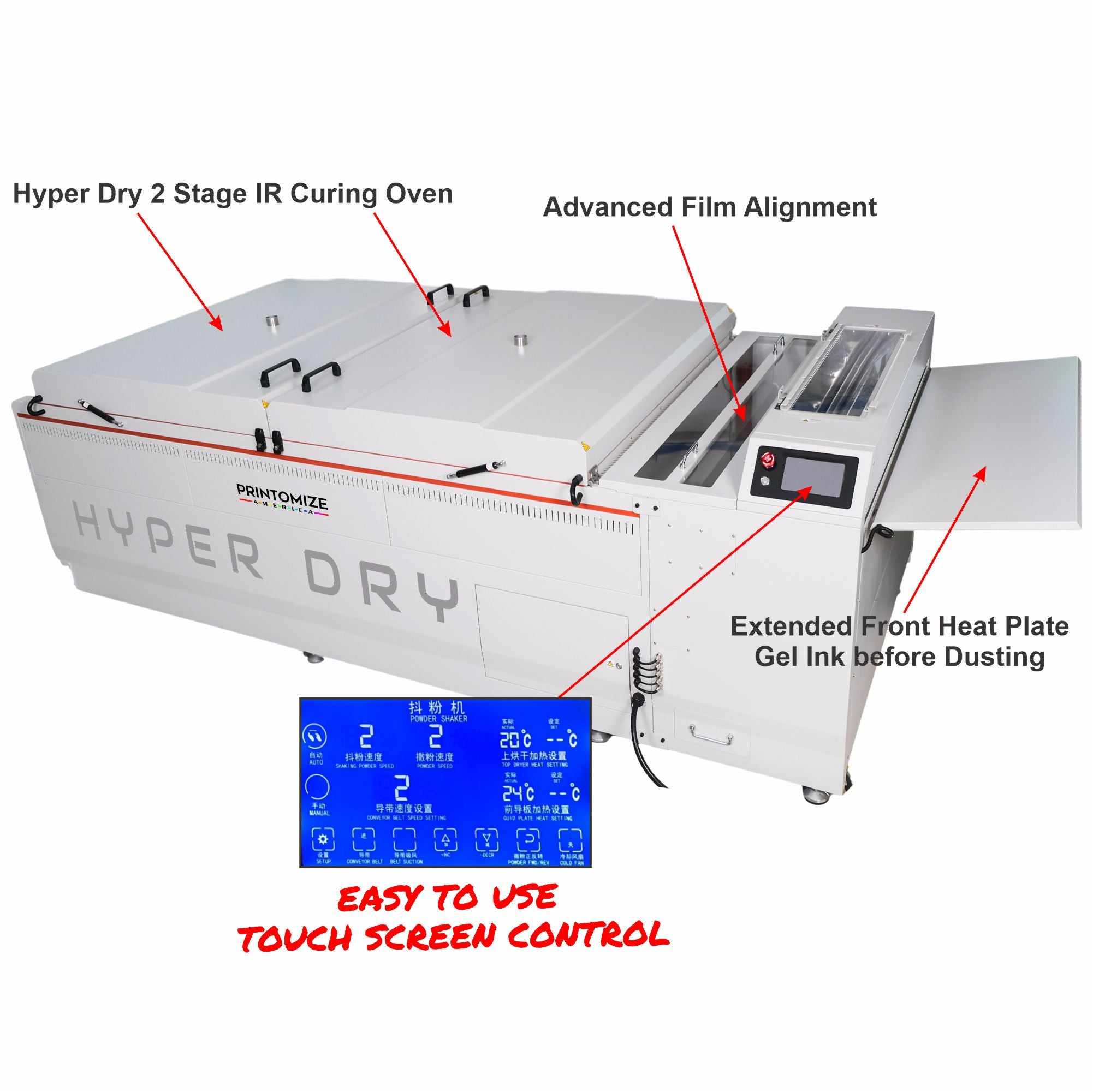

Oven / Shaker
- Capacity: 48" DTF film and paper
- Control: All-in-one touch screen operation with variable dusting, shaker control and auto feed
- Pre-heat: Extended front heat plate gels ink effectively before dusting
- Curing: Two stage main IR curing oven with post-cooling function
- Film handling: Conveyor belt system with front and back vacuum
- Finishing: Auto take-up with vacuum feed and sensor control
- Power: 220V, 3 phase, 76A
What's Included
- Hyper XIN 8: 8 Epson i3200 printheads with touchscreen control panel and computer
- Hyper DRY48: 48" dryer/oven with touch screen
- Film: 10 rolls, 47.2" x 328ft, double sided cold/warm peel
- Ink: 80 liters white, 20 liters each CMYK
- Powder: 20kg sack of DTF powder
- Fume extraction: PA-JS160 fume extractor
- Warranty: 1 year comprehensive, 3 year limited
- Support: Standard phone, email and chat
- Setup: Professional in-house installation and training
Requirements & Recommendations
- Electrical: Printer – 220V, 12A | Oven – 220V, 3 phase, 76A
- Environment: 70–75°F, 40–60% humidity
- Software knowledge: Basic proficiency in Photoshop, Illustrator or CorelDRAW
Dimensions
- Printer: 113" x 39" x 74", 1,010 lbs — crated 116" x 37" x 39", 1,076 lbs
- Oven: 170" x 63" x 42", 1,279 lbs — crated 113" x 75" x 47", 1,367 lbs
The highest-volume DTF system we build. Eight printheads, a 48" oven, and the output of six standard machines in a single line.
Printomize America offers two levels of warranty coverage on DTF printers: Standard Coverage and Comprehensive Coverage. Both run for one year from the date of purchase, cover factory-original parts against defects in materials and workmanship, and apply to the original purchaser only. Neither is transferable.
Proof of purchase — your invoice or order number — is required for any claim.
Which coverage applies to you
Coverage level is determined at the time of purchase. If you are unsure which level applies to your machine, contact us with your order number and we will confirm.
What each level covers
| Component | Standard | Comprehensive |
|---|---|---|
| Mainboard | Covered | Covered |
| Power board | Covered | Covered |
| Head board | Covered | Covered |
| Printheads | Not covered | Covered (limits below) |
| Capping station assembly | Not covered | Covered |
| Ink system — tank, mixer, lines, pump | Not covered | Covered |
| CR motor | Not covered | Covered |
| Belts | Not covered | Covered |
| Decoder | Not covered | Covered |
| Sensors | Not covered | Covered |
| Fans | Not covered | Covered |
| Heat plate | Not covered | Covered |
Wear items — not covered at either level: dampers, print head wipers, print head caps, encoder strip, print head cables.
The capping station assembly is covered under Comprehensive Coverage. The rubber caps within it are wear items and are not.
Once your warranty period ends, troubleshooting and the cost of parts are the customer's responsibility.
Printhead replacement limits
Comprehensive Coverage includes printhead replacement, limited per machine over the warranty period:
| Printer | Printheads |
|---|---|
| Peregrine 2 | 2 |
| Peregrine 4 | 2 |
| Hyper 2 | 2 |
| Hyper Bright 3 | 2 |
| Hyper 4 | 2 |
| Hyper 5 | 3 |
| Hyper Bright 5 | 3 |
| Hyper 8 Head | 4 |
| Hyper UV DTF Printer | 2 |
| Hyper Vision UV Flatbed | 2 |
Oven and shaker coverage
Comprehensive Coverage includes motors, fans and electrical components.
Wear items — not covered: shaker blades, oven belts, heating and curing bulbs.
How to make a claim
Remote diagnosis is a required first step. Claims must begin with a video call with our technical team. Parts ordered or repairs carried out without completing this step are not covered.
- Contact us with your order number and a description of the fault
- Complete a video diagnosis call — included at no charge
- Receive authorisation for the replacement part or return
Email: info@printomizeamerica.com
Phone: +1 323-761-9198
Hours: Monday to Friday, 9:00 AM – 5:00 PM PST
Technical support
Remote support by video call — included at no charge, and required before a claim. Our technical team identifies the fault, confirms which part is needed, and walks you through fitting it. In most cases this resolves the issue without shipping the machine anywhere.
On-site service visits — available nationwide. If you would prefer a technician to attend in person, we can arrange a visit anywhere in the United States. Service call charges are quoted on request, as they depend on your location and the travel involved. Our published in-person service rate is $150 per hour.
Service call charges apply whether or not the equipment is under warranty. This warranty covers parts — it does not cover on-site labour or travel.
Self-installation
You may fit replacement parts yourself, and our video support is there to guide you through it. Printomize America is not responsible for damage arising from self-repair.
Shipping and packaging
Warranty parts ship free by UPS Ground. If you need a part urgently, express shipping is available — you pay the difference between the express service and standard UPS Ground.
Customers are responsible for shipping to and from Printomize America in Torrance, CA when a machine must be returned for repair.
Equipment must be properly packaged for transit. Printomize America is not responsible for damage caused by inadequate packaging — in either direction.
Equipment must be returned in its original Printomize America crate. If the original crate is no longer available, a replacement can be purchased for $500 plus shipping, or you will be billed for a new crate to return the equipment.
Replacement parts
Each defective part may be replaced once during the warranty period.
The part being replaced must be returned to Printomize America, Torrance, CA within 15 business days at the customer's expense. If it is not received within that window, the replacement part will be invoiced.
Defective on arrival
Report any missing or non-working parts within 10 days of delivery. Within that window, Printomize America covers both the parts and the shipping. After 10 days, the standard warranty terms above apply.
Replacement equipment
Equipment must be returned for repair. Replacement units are issued only where we determine a machine cannot be repaired, and will be new or refurbished to like-new condition.
Downtime
Printomize America does not provide loaner equipment during repair or shipping, and is not responsible for losses arising from downtime.
What is not covered
- Physical, cosmetic, or shipping damage caused by carriers. Claims for carrier damage must be opened directly with the carrier.
- Damage from fire, flood, lightning, improper electrical current, software problems, or interaction with non-Printomize America products.
- Damage from improper installation, failure to perform preventive maintenance, failure to follow instructions, improper or abnormal use, misuse, neglect, or accident — including improper storage, or transporting the product without correct preparation and packaging.
- Unauthorised adjustments, modifications, or added accessories.
- Normal wear and tear, or external causes beyond our reasonable control.
What voids this warranty
- Use of non-Printomize America consumables
- Alteration or modification of the product
- Repairs attempted without prior authorisation from Printomize America
- Use of unauthorised parts
Customer responsibilities and maintenance
Maintenance is what keeps these machines running. A consistent cleaning routine and a climate-controlled workspace make the difference. It is the customer's responsibility to learn correct maintenance for their printer.
DTF inks are water-based and will clog printheads if the machine is left unused for more than a couple of days.
- Perform a nozzle check daily, before starting any print jobs, so you know whether the printhead is ready or has blocked nozzles that need cleaning.
- Clean around the printhead and the wiper blade at the end of each print day, to prevent clogging. Use a cleaning solution when necessary.
- Wet-cap the capping station every day after you finish printing. This keeps the printhead underneath wet and prevents clogging. Use a cleaning or capping station solution.
