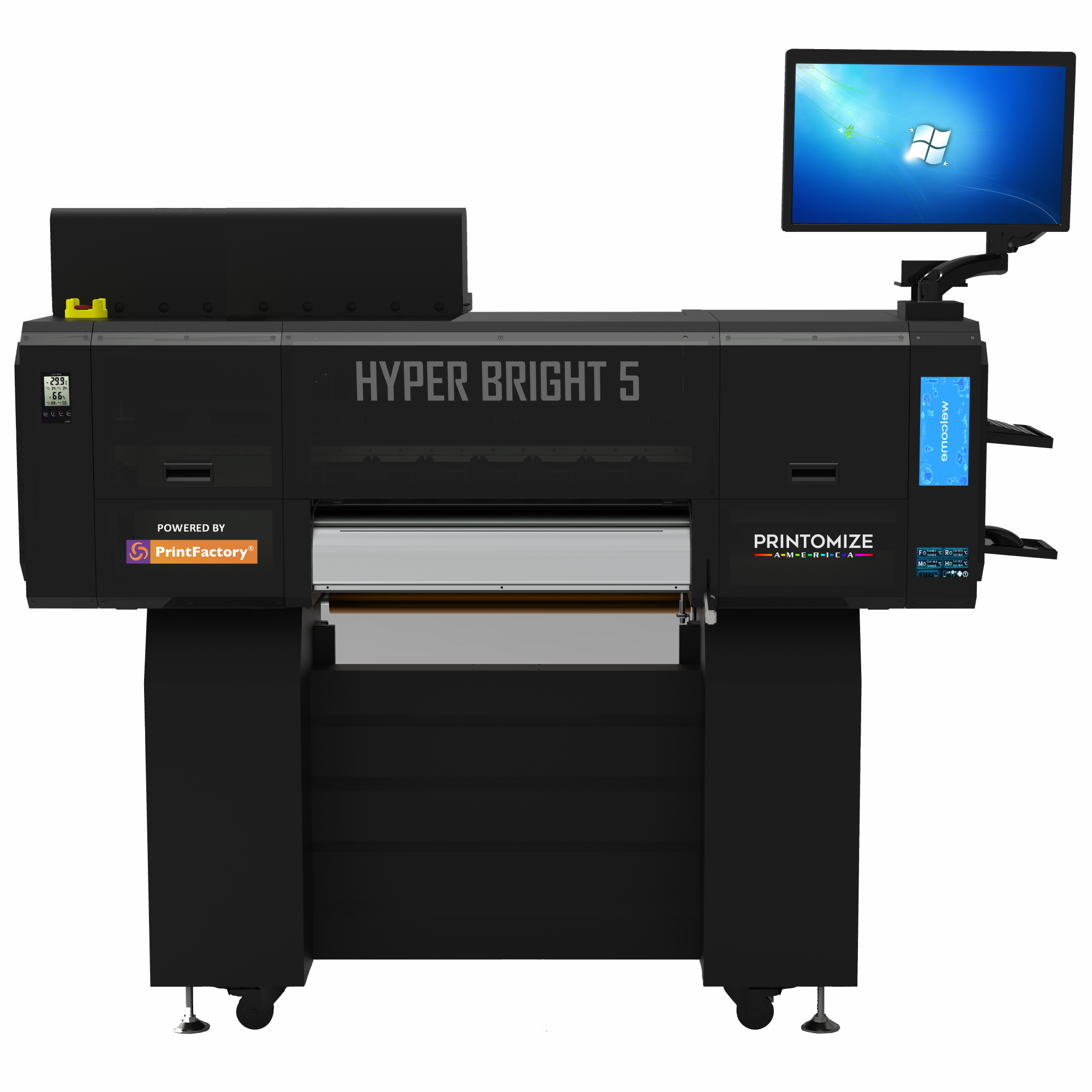

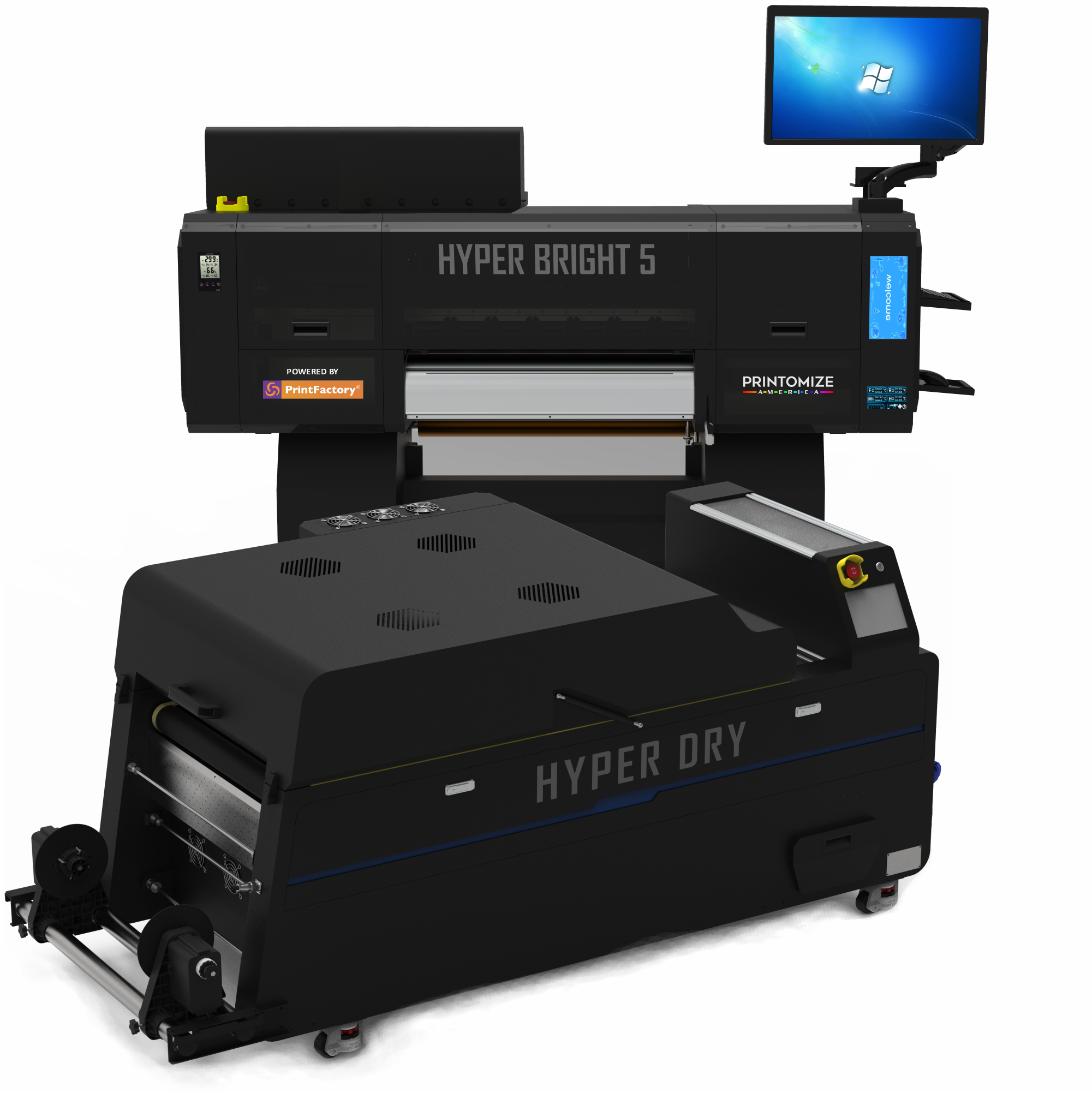

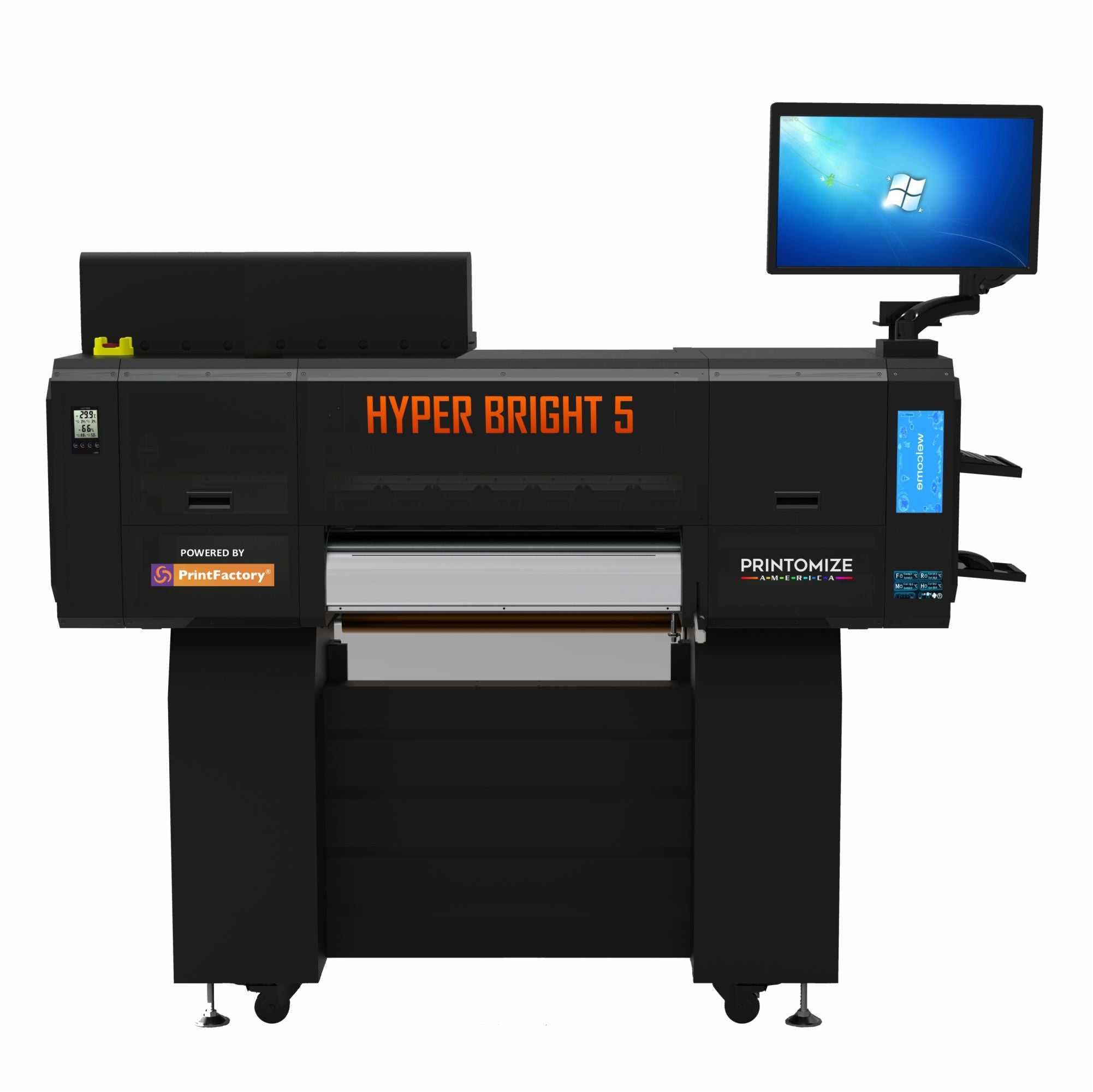

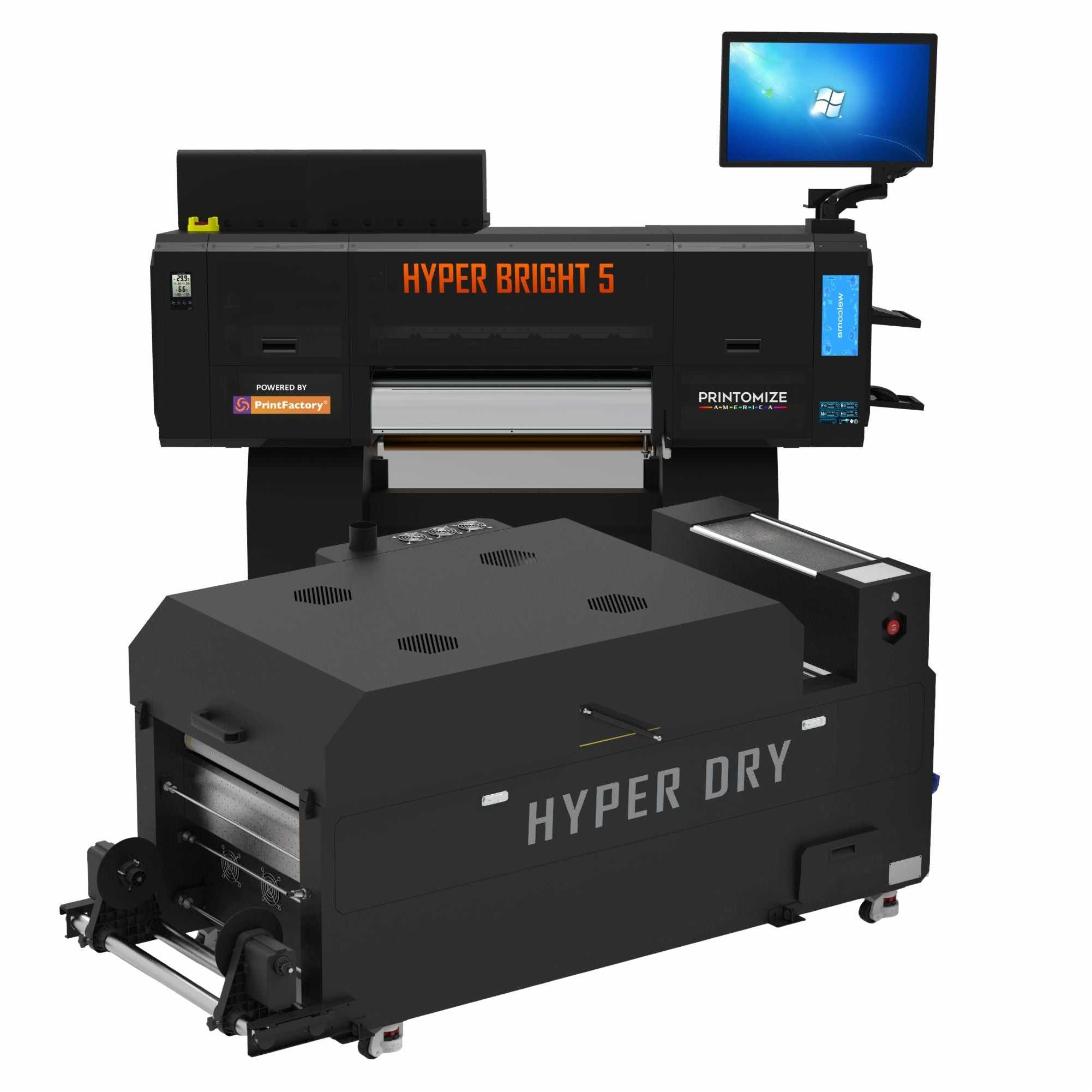

Hyper Bright 5 (9 Color) DTF Printer & Oven Combo
Take your DTF production to the next level with the Hyper Bright 5 (9 Color) DTF Printer & Oven Combo — engineered for professional shops that demand ultra-vibrant prints, high-speed output and complete reliability. With 9-color printing (CMYK, red, green, blue, orange plus white, with fluorescent ink set options), your designs achieve unmatched color depth and precision.
HYPER DTF features a true 25" maximum print width, allowing users to print two 12"-wide designs side by side in a single pass. This expanded width delivers a major productivity advantage over most competing DTF systems, which max out at 22.5".
Key Features
Printer
- High-performance printheads: 5 x Epson i3200 print heads — 2 x Epson i3200 (WWWW – WWWW) and 3 x Epson i3200 A1HD (CMYK – RGOB) plus fluorescent ink set options
- Auto maintenance: wet capping and cleaning system extends print head life
- Dual touchscreen control: 24" full-motion display with secondary printer control screen
- Integrated PC: Ryzen 9 Mini PC with 32GB RAM and 2TB SSD
- Fast printing: over 150 sq ft per hour
- Automatic film tension: supports up to 984 ft (300m) roll capacity
- Maximum print width: true 25" — maximize film usage and reduce waste
- Protective features: anti-collision system safeguards print heads
- Ink management: advanced ink rolling system
- Environmental monitoring: real-time heat and humidity display
- Power: 110V / 5A
Oven / Shaker
- User-friendly control: easy-to-use touchscreen interface
- IR top and bottom curing oven: 3 ft infrared oven for fast, consistent curing
- Automated film handling: auto belt feed with front and back vacuum, cooling fans and auto film take-up
Warranty & Support
- 2 year limited warranty and support*
- 1 year comprehensive warranty
- Professional setup and training: 2 days of in-house installation and hands-on training
Requirements & Recommendations
- Electrical: Printer – 110V, 50–60Hz, 5A | Oven – 220V, 32A
- Environment: 70–75°F, 40–60% humidity
- Space: minimum 15' x 8' (19' x 12' recommended) with 36"+ wide doorways
- Software knowledge: basic proficiency in Photoshop, Illustrator or CorelDRAW
What's Included
- RIP software: PrintFactory (1 year paid subscription)
- Ultra Bright ink bundle: 1L each CMYK + 4L white
- Ultra Bright RGB: 1 liter each of red, green, orange and blue
- Cleaning kit
- KodaColor flushing solution: 3 liters
- KodaColor cleaning solution: 3 liters
- DTF powder: 10 lb
- DTF film rolls: 2 rolls, 25.6" x 328 ft (double sided instant hot peel)
- Mini A8 Ryzen 9 PC: 32GB RAM + 2TB SSD, Windows 11 Pro
- Touch screen monitor, keyboard and wireless mouse
Upgrade your production capabilities with the Hyper Bright 5 DTF Printer & Oven Combo.
Limited Warranty:
Our one Year limited warranty covers all factory original parts for one year from the date of purchase. But excludes components that come in contact with ink. The Limited Warranty and Support are valid for the original purchaser only and are non-transferable Customer is responsible for to and from shipping charges to have the printer repaired by Printomize America in Torrance CA. Printer must be sent in original packaging, Printomize America is not responsible for shipping damage due to poor packaging. Customer may self-install warranty parts, Printomize America is not responsible for damage caused during self-repair. Once the limited warranty ends, the customer is responsible for any troubleshooting and cost of parts.
WHAT IS COVERED
The limited warranty will cover the following parts: Mainboard, Power board, Head Board, A replacement part will be issued only one time during the 12 month period All defective parts replaced under the limited warranty must be shipped back to Printomize America , Torrance, CA at the customer expense within 15 business days. Failure to return warranty replaced parts within 15 business days will result in the customer being billed for the replacement part.
WHAT IS NOT COVERED
The limited warranty will not cover components that come in contact with inks this includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, or fans are not covered .
Additional Limited Warranty Terms
The limited warranty will not cover the following
- Physical, cosmetics, or shipping damage by the carrier. In that case, is the customer's responsibility to open a direct claim with the carrier company to report any damages.
- Damage caused by disasters, such as fire, flood, lightning, improper electrical current, software problems, or interaction with non- Printomize America products.
- Damage caused by improper installation, failure to follow the proper instructions, performing preventive maintenance**, improper or abnormal use, misuse, neglect, or accident including but not limited to improper storage or transporting the product without the proper preparation and packaging, unauthorized adjustments, modifications or addition of accessories, normal wear and tear or external causes such as accidents or other actions or events beyond our reasonable control.
The Limited warranty is VOID if non Printomize America consumables used,or the product has been altered or modified in any way, including but not limited to attempted repairs without prior authorization from Printomize America or the use of unauthorized parts.
The Defective on Arrival (DOA) period is 10 days starting the date customer receives the shipment. If the product you purchased arrives with missing parts or non-working parts that are not covered by the limited warranty, we will cover the replacement part and shipping cost to send the part/s you need. After 10 days, the customer is responsible for any part and shipping costs.
Printomize America does not provide a loaner printer during the repair and shipping time and is not responsible for any losses due to downtime.
Equipment must be returned for repair. We do not send out a replacement equipment unless we deem yours can't be repaired by us. Replacement equipment will be either new or like new refurbished.
Customers that do not keep the shipping crate can purchase a new crate from us for $500 plus shipping.
It is the customers responsibility to get the equipment back to Printomize America safely. Warranty does not cover damage in shipping due to poor packing.
Equipment must be returned in original Printomize America crate. If not, customer will be charged for a new crate to return the equipment.
***Customer Responsibilities and Maintenance***
MAINTENANCE
Maintenance is the key to keeping your machines running in top condition. Keeping up with a cleaning routine and creating a climate-friendly workplace to print in will help your printer run smoothly. It is the customer’s responsibility to learn how to do the proper maintenance on your printer. The customer understands that the inks are water-based and will clog the printheads if the machine is left unused for more than a couple of days. These are some things you can do:
- Perform nozzle checks every day before starting any print jobs. This way, you can tell if the printhead is ready to print or if any nozzles are blocked and needs to be cleaned.
- At the end of your print day, you will need to clean around the printhead and clean the wiper blade. This is done to prevent the printheads from getting clogged. A cleaning solution is recommended to be used when necessary.
- Wet capping the printer capping station every day after you finish printing for the day. This helps the printhead underneath to stay wet and to prevent the printhead from getting clogged. A cleaning solution or capping station solution is recommended for use.
Comprehensive 1 Year Warranty:
Our Comprehensive warranty covers all original parts for 1 year from the date of purchase. The Comprehensive Warranty and Support are valid for the original purchaser only and are non-transferable.The Customer is responsible for to and from shipping charges to have the printer repaired by Printomize America in Torrance CA. Printer must be sent in original packaging, Printomize America is not responsible for shipping damage due to poor packaging. Customer may self-install warranty parts, Printomize America is not responsible for damage caused during self-repair. Once the Comprehensive warranty ends, the customer is responsible for any troubleshooting and cost of parts.
WHAT IS COVERED
The Comprehensive warranty will cover the following parts:
Printer
Mainboard, Print Heads* Power board, Head Board, capping station , ink system ink tank, ink mixer, ink lines and power pump, CR motor, belts, decoder, sensors ,Heat ,Plate , Fans.
*Comprehensive Warranty has a policy abuse limit on Print Heads:
| Peregrine 2 | 2 Per Year/ Warranty Period |
| Peregrine 4 | 2 Per Year/ Warranty Period |
| Hyper 2 | 2 Per Year/ Warranty Period |
| Hyper 3 | 2 Per Year/ Warranty Period |
| Hyper 4 | 2 Per Year/ Warranty Period |
| Hyper 5 | 2 Per Year/ Warranty Period |
| Hyper XIN 8 | 4 Per Year/ Warranty Period |
Oven/Shaker:
Motors, Fans, Electrical Components*
All defective parts replaced under the Comprehensive warranty must be shipped back to Printomize America, Torrance, CA at the customer expense within 15 business days. Failure to return warranty replaced parts within 15 business days will result in the customer being billed for the replacement part.
WHAT IS NOT COVERED
The Comprehensive warranty will not cover components that is considered fear wear and tear these include:
All Printers: Dampers, Print Head Wipers, Print Head Caps, encoder strip
All Oven/Shaker : Shaker Blades , Oven Belt , Heating/Curing Bulbs
Additional Warranty Terms
The Comprehensive warranty will not cover the following
- Physical, cosmetics, or shipping damage by the carrier. In that case, is the customer's responsibility to open a direct claim with the carrier company to report any damages.
- Damage caused by disasters, such as fire, flood, lightning, improper electrical current, software problems, or interaction with non- Printomize America products.
- Damage caused by improper installation, failure to follow the proper instructions, performing preventive maintenance**, improper or abnormal use, misuse, neglect, or accident including but not limited to improper storage or transporting the product without the proper preparation and packaging, unauthorized adjustments, modifications or addition of accessories, normal wear and tear or external causes such as accidents or other actions or events beyond our reasonable control.
The Comprehensive warranty is VOID if non Printomize America consumables are used, or the product has been altered or modified in any way, including but not limited to attempted repairs without prior authorization from Printomize America or the use of unauthorized parts.
The Defective on Arrival (DOA) period is 10 days starting the date customer receives the shipment. If the product you purchased arrives with missing parts or non-working parts that are not covered by the limited warranty, we will cover the replacement part and shipping cost to send the part/s you need. After 10 days, the customer is responsible for any part and shipping costs.
Printomize America does not provide a loaner printer during the repair and shipping time and is not responsible for any losses due to downtime.
Equipment must be returned for repair. We do not send out a replacement equipment unless we deem yours can't be repaired by us. Replacement equipment will be either new or like new refurbished.
Customers that do not keep the shipping crate can purchase a new crate from us for $500 plus shipping.
It is the customers responsibility to get the equipment back to Printomize America safely. Warranty does not cover damage in shipping due to poor packing.
Equipment must be returned in original Printomize America crate. If not, customer will be charged for a new crate to return the equipment.
***Customer Responsibilities and Maintenance***
MAINTENANCE
Maintenance is the key to keeping your machines running in top condition. Keeping up with a cleaning routine and creating a climate-friendly workplace to print in will help your printer run smoothly. It is the customer’s responsibility to learn how to do the proper maintenance on your printer. The customer understands that the inks are water-based and will clog the printheads if the machine is left unused for more than a couple of days. These are some things you can do:
- Perform nozzle checks every day before starting any print jobs. This way, you can tell if the printhead is ready to print or if any nozzles are blocked and needs to be cleaned.
- At the end of your print day, you will need to clean around the printhead and clean the wiper blade. This is done to prevent the printheads from getting clogged. A cleaning solution is recommended to be used when necessary.
- Wet capping the printer capping station every day after you finish printing for the day. This helps the printhead underneath to stay wet and to prevent the printhead from getting clogged. A cleaning solution or capping station solution is recommended for use.
Welcome to our Returns, Refund and Exchange Policy page. We strive to ensure complete satisfaction with your purchase. Please read all policy details carefully to understand your rights and obligations regarding returns and exchanges.
Returns for Inks and Printing Supplies: All inks and printing supplies (consumables) must be returned in new condition, unused, and unopened within 30 days from the date of purchase. Note that shipping costs are non-refundable, and customers are responsible for return shipping expenses. We require all items to be returned in their original packaging.
Damages: No returns will be accepted for items damaged by carriers during shipping. In such cases, customers must file a claim directly with the carrier as soon as possible.
Exclusions: Please be aware that certain items are non-returnable. Items such as inks, printing supplies, bundles, or any purchases made with gift cards are excluded from returns.
Restocking Fee: A 20% restocking fee applies to all returned items. Shipping costs are non-refundable. An RMA# (Return Merchandise Authorization) is required for all returns. Please request an RMA via email. Returns without an RMA will be denied.
Processing Time: Once we receive your return, it may take 4-7 days to process your request.
Final Sales and Non-Returnable Items: No refunds, returns, or exchanges are allowed on equipment, parts, accessories, or any DTF printer once ink has been installed. Issues related to printers must be managed under warranty terms. This policy also applies to dryers, ovens, and heat presses, including printheads and dampers.
Software and Downloads: All sales of software that include activation codes or USB key dongles, downloadable products, gift cards, guides, or video tutorials are final. No refunds or exchanges will be issued.
Gift Cards: Gift cards and products purchased with gift cards are non-returnable and are considered final sales.
Cancellations and Refund Orders: For regular cancellations, a fee of 5% plus $1.50 applies. This is for processing canceled or refunded orders; the processing fee remains non-refundable. If you switch to an item of lesser value after processing, a refund fee for the price difference will apply.
Right to Cancel: Printomize America reserves the right to cancel any order due to non-payment, suspected fraud, or submission of incorrect information.
Additional Terms: If the shipping crate is not retained, you may purchase a new crate from us for $500 plus shipping. All equipment must be returned in the original Printomize America crate. If not, the customer will be charged for a new crate to return the equipment.
