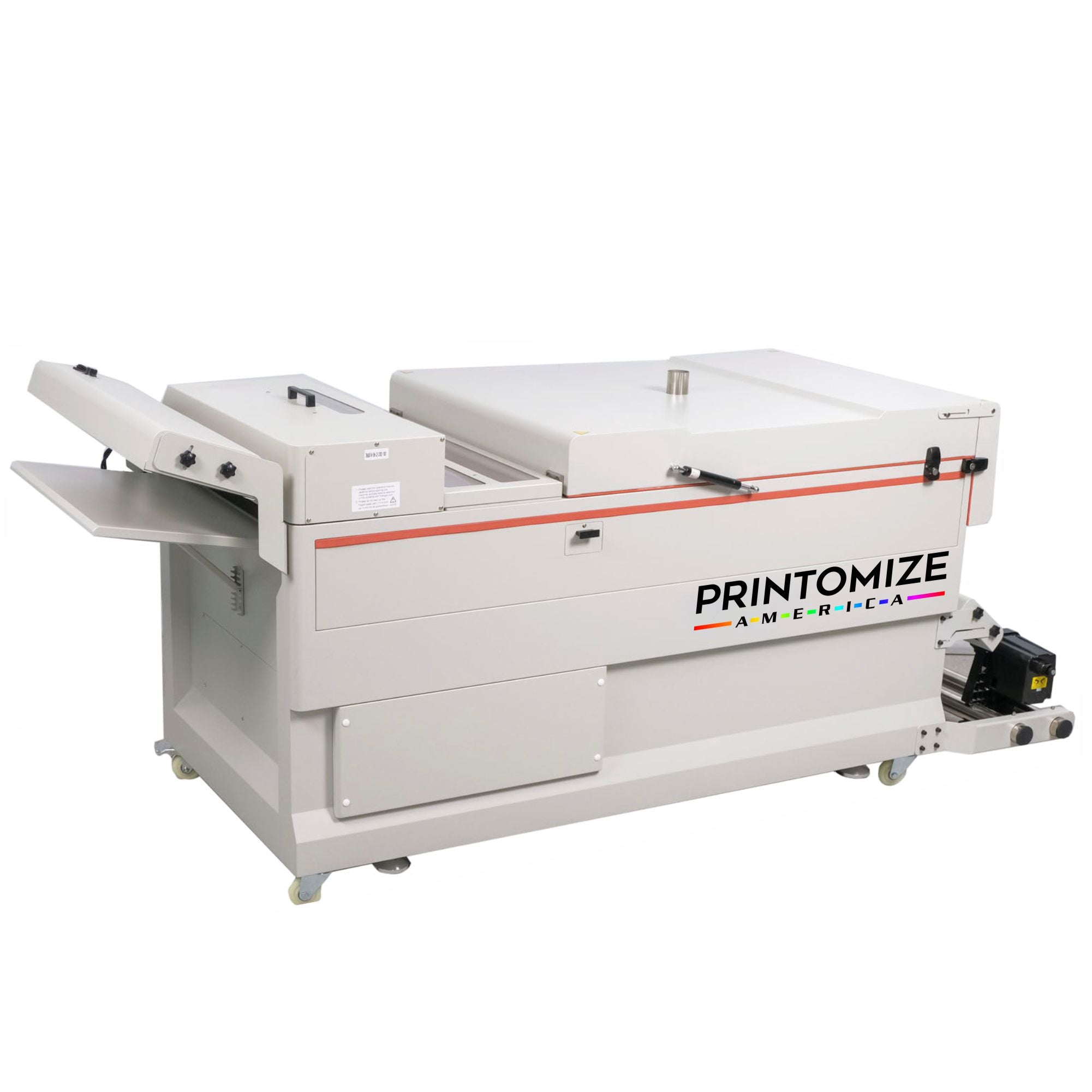

24" Automatic DTF Powder Shaker & Dryer — Auto Powder Recycling

Automatic powder shaker and dryer for film up to 600mm (23.6") wide, running at 6 to 20 m²/hour. Powder is spread by rotating brush, shaken to remove the excess, then returned to the hopper automatically. Suits DTF printers with up to four Epson i3200 printheads.

Powder handling

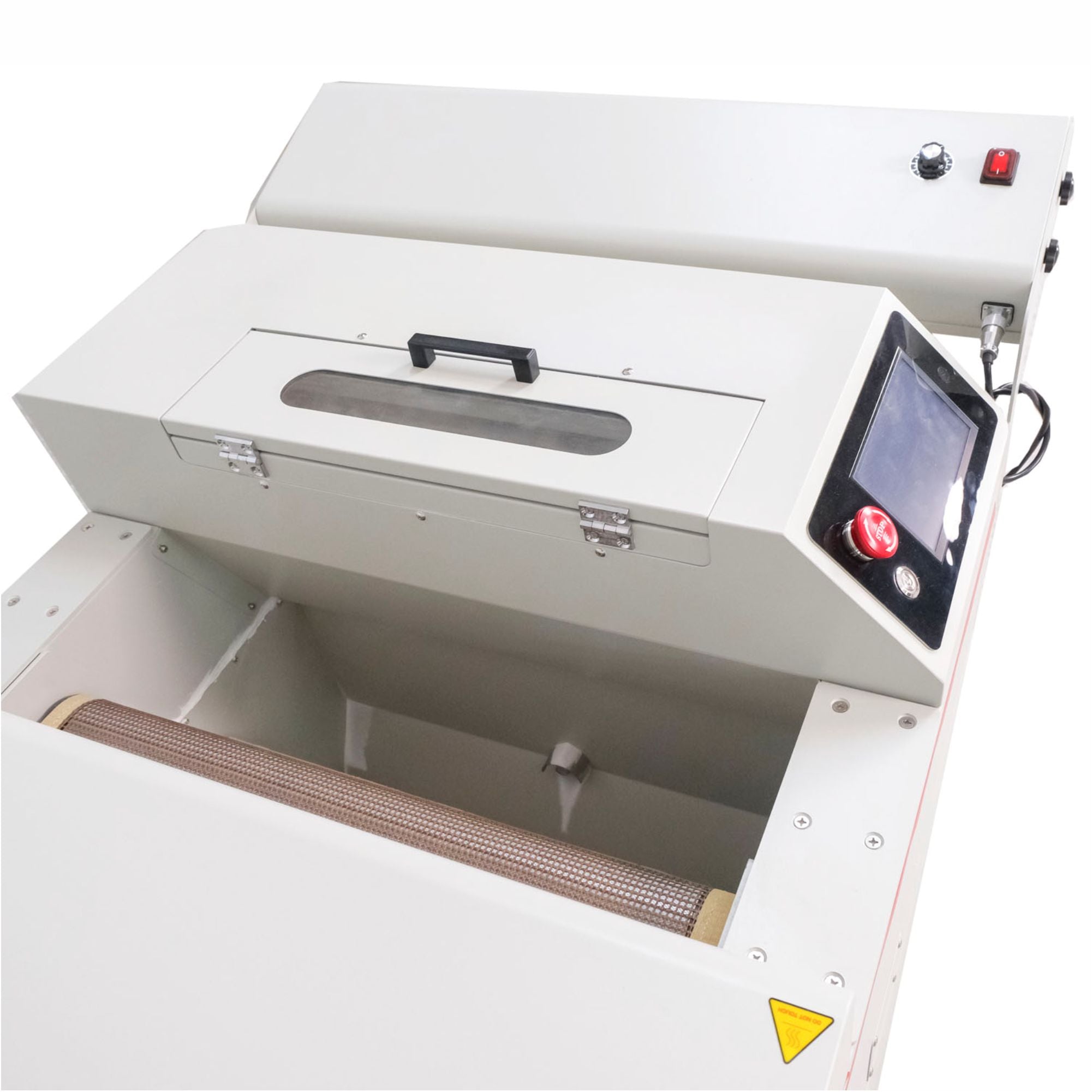

• Rotating brush spreads hot melt powder evenly across the film
• Vibrating shaker removes excess powder for consistent transfers
• Automatic powder recycling returns excess to the hopper, 5 adjustable speeds
• One-touch powder box cleaning from the touchscreen
• Maximum shake powder width 600mm (23.6")

Curing and drying

• 8 quartz infrared heating tubes
• PID curing temperature control
• Front guide plate heating with upper drying and curing
• 4 air cooling fans
• Recommended production speed 6 to 20 m²/hour

Media handling

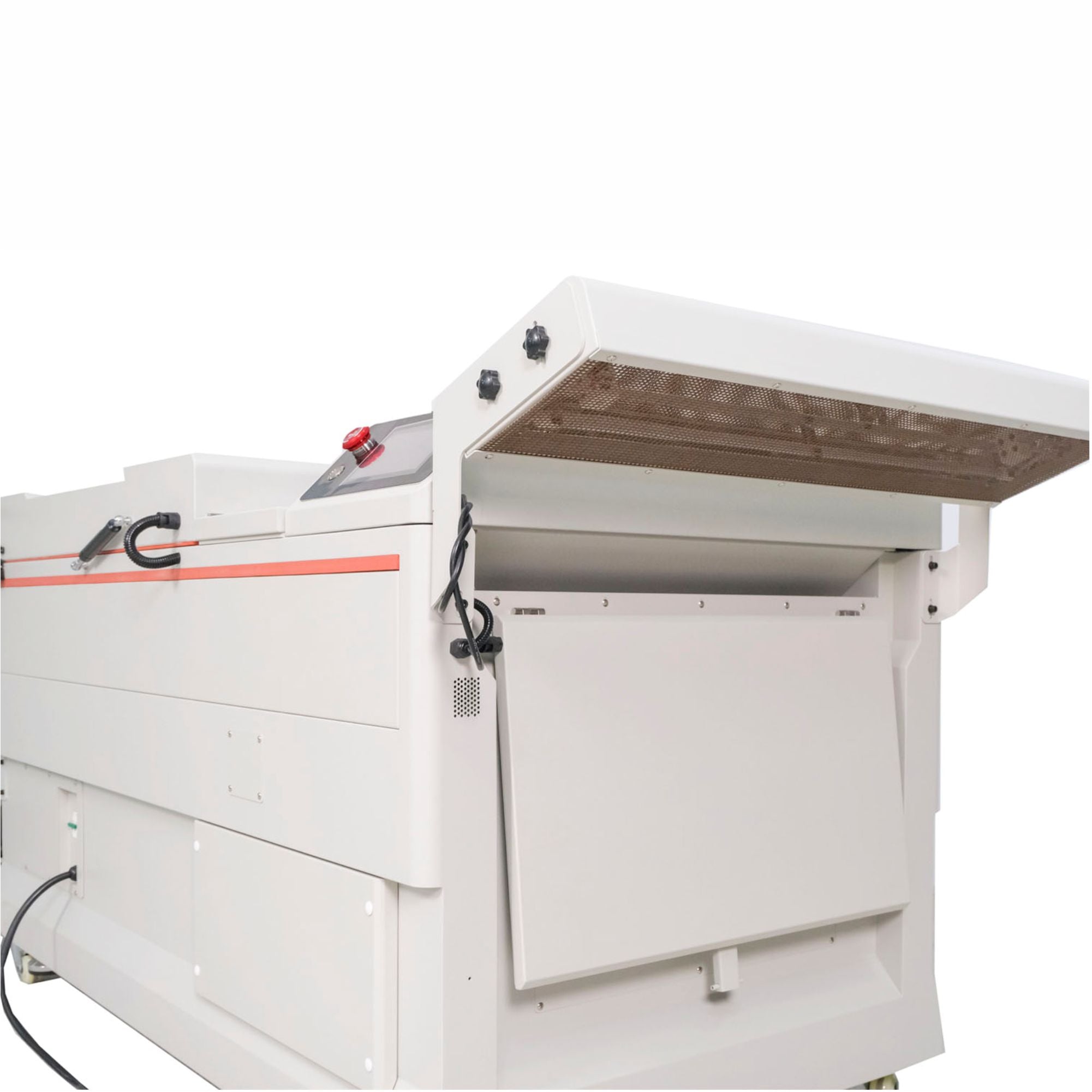

• Vacuum absorption conveyor minimises film movement and waste

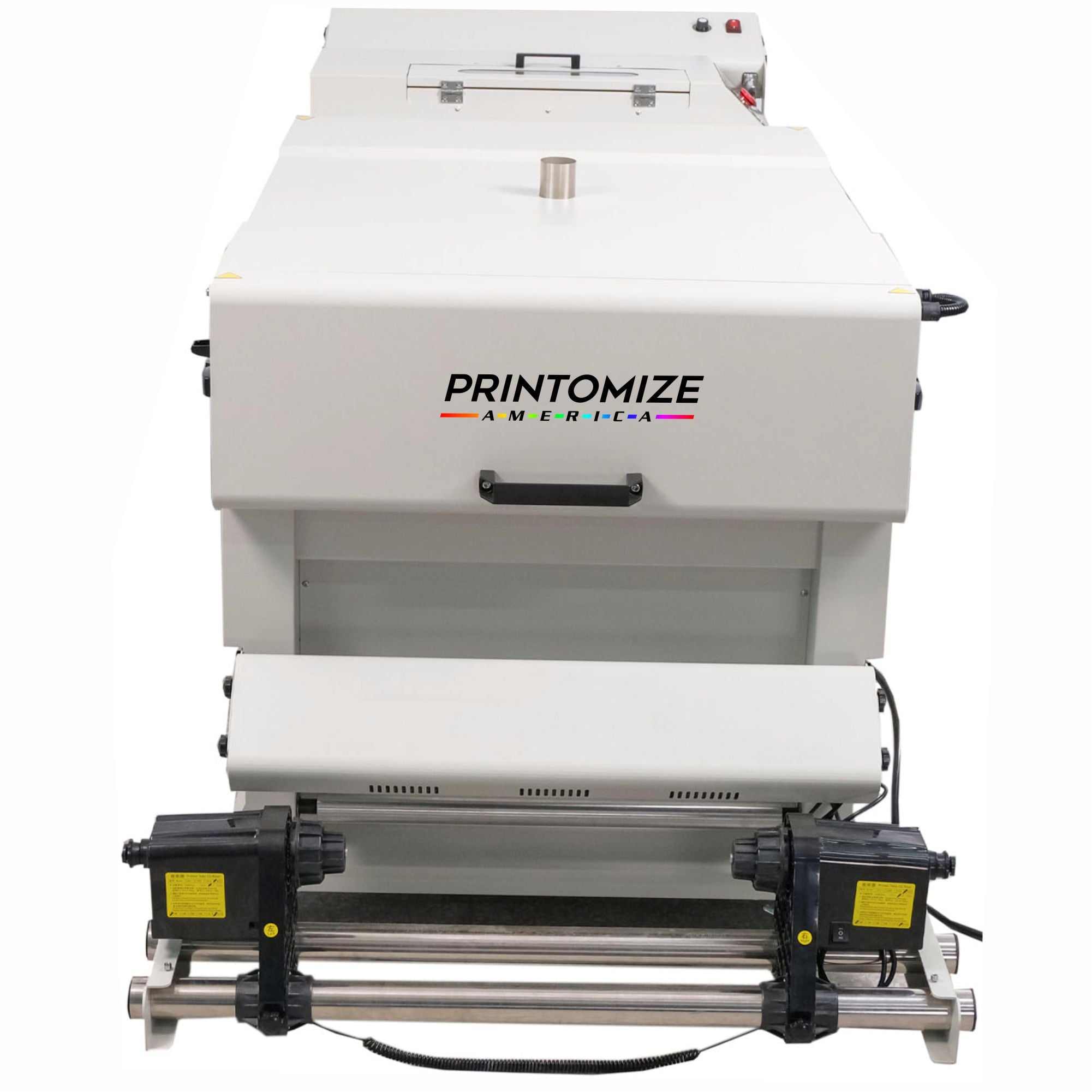

• Automatic induction rewinding

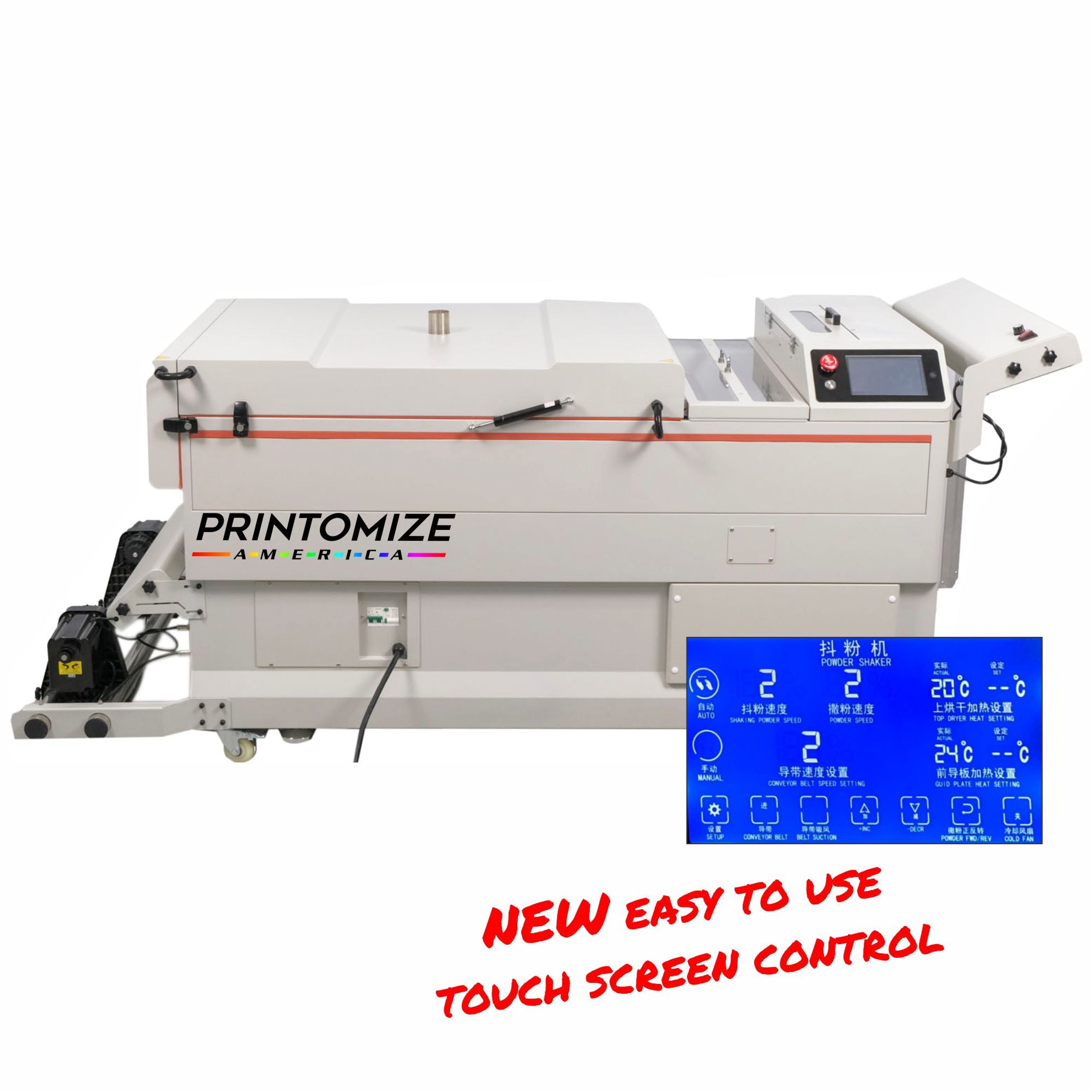

• Touchscreen control panel

Specifications

• Machine size 94.1" x 35.9" x 39.4" (2391mm x 912mm x 1002mm)
• Net weight 507 lbs (230kg)
• Crated size 76.8" x 44.1" x 43.8" (1950mm x 1120mm x 1113mm)
• Gross weight 661 lbs (300kg)
• Power supply AC 220V, 50/60Hz, single phase
• Current 33A, 7200W

Which shaker

Two machines in the range take film up to 600mm (23.6") wide at the same price. They differ in footprint, power draw and powder handling.

• This machine (H6504) — automatic powder recycling with 5 speed settings, rotating brush spreading and one-touch powder box cleaning. 94.1" long, 507 lbs, 33A / 7200W.
• 4 Head 24in High Speed Shaker (H6501-V2) — larger frame with 9 cooling fans in two rows. 101.9" long, 595 lbs, 36A / 7900W.

Choose this machine for automatic powder recycling, a shorter frame and lower power draw. Choose the 4 Head for the larger frame and greater cooling capacity.

Also in the range: the 2 Head 24in shaker and dryer at a lower price point, and the Hyper Dryer high speed shaker and dryer above it.
